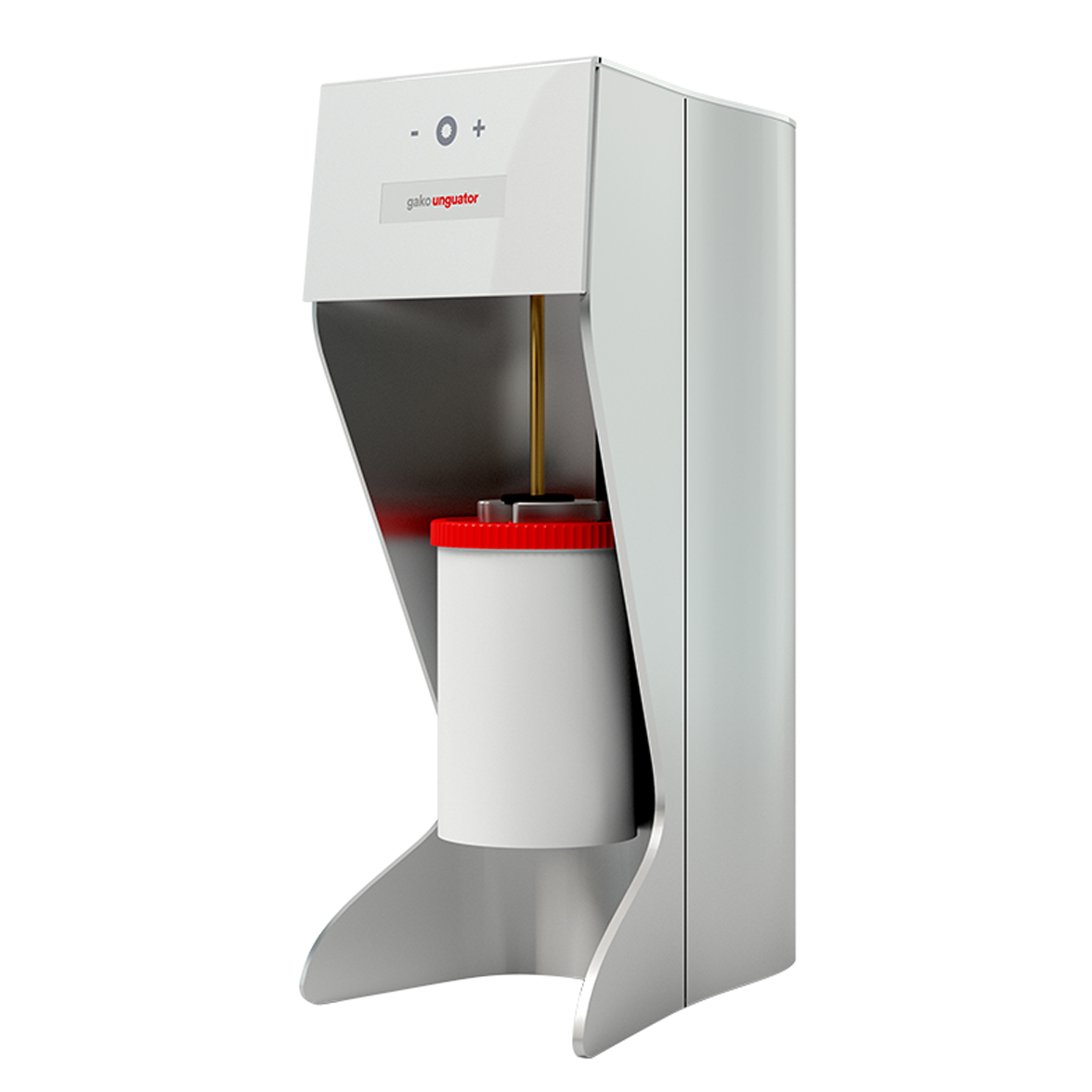

FagronLab^TM Unguator EMP

Name: FagronLab TM Unguator EMP - Fagron
SKU: AT1000003548
Price: 45885.00 ZAR
Availability: InStock

Mixing / Homogenisation System & Accessories

Revolutionizing the pharmaceutical compounding environment for customized formulations has been the main focus of the Unguator Technology. Its aim has been to facilitate the preparation of many pharmaceutical, cosmetic, veterinary, and various other formulations, in a fraction of time and cost associated with conventional methods.

R45,885.00

Or split into 4x interest-free payments Learn more

Description

The FagronLab^TM Unguator line of advanced „sweep–wall“ mixing system has accelerated formula developments and increased general production efficiency in preparation of compounding prescriptions, such as ointments, creams, gels, pastes, suppositories, etc.

The FagronLab^TM Unguator product assortment also consists of a unique set of “push-up” jars that work specifically with the gako unguator mixing equipment. While no single device can accommodate every formulation in any compounding institution, the use of the FagronLab^TM Unguator system offers an entire range of new compounds with consistent quality by replacing many of the traditional tools.

FagronLab™ Unguator Jars 30ml – 500ml

All Unguator® jars operate on the patented “piston-principle” design, which serves unique functions prior, during, and after the mixing process. The Unguator® system is unique in that all ingredients can be weighed into the mixing jar at the same time. The closed environment achieved in the container eliminates the problems of air intake and contaminations associated with traditional preparations.

The jars serve simultaneously as:

• Measuring Unit
• Mixing Chamber
• Storage Container
• Dispensing Jar

Therefore, all materials and ingredients remain in the closed jar throughout the mixing process. The final product represents a consistent, superior blending result with:

• Extended shelf life
• Significant time, cost savings
• Accurate, specific dispensing
• Minimal clean-up

Unguator® jars are made from a durable polypropylene/polyethylene plastic and can be heated in a hot water bath or microwave oven.

Jar Size	Pack Size	Price incl. VAT	Product Code
30ml	10	R143.75	AT1000000333
50ml	12	R226.53	AT1000000334
100ml	10	R250.37	AT1000000335
200ml	8	R214.31	AT1000000336
300ml	4	R198.23	AT1000000337
500ml	4	R242.71	AT1000000338
1000ml	3	R334.97	AT1000000339

FagronLab™ Unguator Varionozzle

The UNGUATOR® Varionozzle 1, 2, 4 mm are inserted into the central opening of the lid. They reduce the opening of the UNGUATOR® jars from 9 mm to 1, 2 and 4mm.

The domed shape offers the smooth application of the product over the skin. This allows for accurate dispensing of all, high to low, viscosity preparations.

For differentiation in size, nozzles are colored as follows

4mm – pink
2mm – yellow
1mm – blue

(Attention: The 4mm opening fits standard syringes to fill precise dosages. All nozzles fit drop bottles for liquids.).

Size	Pack Size	Price incl. VAT	Product Code
1 mm	50	R155.25	AT1000000589
2 mm	50	R155.25	AT1000000590
4 mm	50	R155.25	AT1000000591

FagronLab™ Unguator Applicators

The UNGUATOR® applicators reduce the dispensed amount of low viscosity preparations and are used for precise dispensing of low-viscosity preparations. For ear and nose injections, the short applicator is recommended, while for rectal and vaginal injections, the long applicator is recommended. The applicator long is also used as push assistance to move the bottom of any 200ml jar up and generally serves as a finger extension.

Size	Pack Size	Price incl. VAT	Product Code
Short	20	R 62.10	AT1000000587
Long	10	R 69.00	AT1000000588

Unguator Spindle for 300ml and 500ml Jars

The UNGUATOR^® – spindle serves to extract the ointment from Unguator jar sizes both 300/390ml and 500/600ml. New jars have the spindle slightly attached at the bottom and need to be removed by turning to the right, prior the mixing process. After removing of the spindle, the bottom of the jar should be pushed down by using a standard mixing blade.

Important note: By rotation counter clockwise by mistake, the movable bottom may be damaged – these jars can serve as dispensing jar afterwards only, but no longer as mixing jar.

Size	Pack Size	Price incl. VAT	Product Code
Spindle for 300ml Jars	5	R99.43	AT1000000618
Spindle for 500ml Jars	5	R99.43	AT1000000619

FagronLab™ Unguator Air Dynamic System

The AirDynamic® pump system consists of a pump ball and jar adapter that are connected by a hose.

By pumping air pressure into the bottom of the 300, 500, 1000ml jars, the moveable bottom rises towards the top and allows the easy dispensing of the formulation from the jar. This also allows for the easy transfer of finished materials from one jar to other jars via the jar coupling.

The large Unguator® Jars are particularly well suited as storage and transfer containers of semi-solid materials as problems with evaporation, oxidation, and contamination are largely avoided.

The jars remain closed throughout the mixing process and the variable volume insert ensures that no air can enter the material during storage and dispensing.

The large Unguator® jars size 300ml-1000ml are particularly well suited as storage and transfer containers of semi-solid materials as problems with evaporation, oxidation, and contamination are largely avoided. The jars remain closed throughout the mixing process and the variable volume insert ensures that no air can negatively impact the formulation during storage and application period.

Unguator coupling

The UNGUATOR® coupling connects larger and smaller jars to serve as transfer nozzle for hygienic dispensing from bulk preparations in the final dispensing containers. The coupling is connected at the center of the jar lid. For dispensing from 300ml and 500ml jars, a spindle or AirDynamic® system may be used.

Please keep in mind that the finished formulation should be transferred shortly after finalizing the mixing process. At that time the product is often still warmer than room temperature and at a lower viscosity than after the cooling process.

Unguator Air Dynamic System	Pack Size	Price incl. VAT	Product Code
Unguator Air Dynamic System	1	R566.16	AT1000003682
Jar Coupling for AirDynamic System	5	R37.26	AT1000000592
AirDynamic Adaptor Seal	4	R282.90	AT1000003527

FagronLab™ Unguator Disposable Mixing Blades

Both UNGUATOR® Standard Mixing Blade (SMB) and UNGUATOR® Disposable Blade (disp. blades) are designated as UNGUATOR® MBs.

The UNGUATOR® MBs are steadily guided up and down inside the UNGUATOR® Jar. Their special design results in tight contact between the Mixing Blade and the inside wall of the UNGUATOR® Jar which serves primarily for the comminution of the substances during the mixing process.

Additionally forced mixing in the whole mixing space is achieved through the shape and vibration of substances while preparing the ointment. The lubricating effect of the foundation ointment protects the UNGUATOR® Jars and the UNGUATOR® MB against abrasion. Discolorations of the Mixing Blade are mostly irreversible and therefore harmless.

Unguator Disposable Blade (disp. blades)

The UNGUATOR® disp. blade is compatible to use with all UNGUATOR® devices and are applicable for Unguator jar sizes 15ml-max. 200ml. The disp. blade detaches from the blade shaft after use. The quality of the finished product can be checked by opening the lid. After the mixing process is completed, the disposable blade is located under the main lid and may be removed in full or remain inside the jar.

Several disposable mixing blades are packed each size in a conventional Unguator jars (with green lid) so that when opened, the operator can attach the blade to the mixing shaft by simply inserting the bottom end of the blade shaft tip into the centre of the blade and turning one quarter turn counter clockwise (locking the blade in place).

Size	Pack Size	Price incl. VAT	Product Code
15-30ml Disposable Blade	80	R228.53	AT1000000629
50ml Disposable Blade	80	R248.40	AT1000000630
100-200ml Disposable Blade	100	R335.34	AT1000000631
15-100ml Disposable Blade Shaft	1	R666.04	AT1000000606

FagronLab™ Standard Mixing Blades

Both UNGUATOR Standard Mixing Blade (SMB) and UNGUATOR^® Disposable Blade (disp. blades) are designated as UNGUATOR^® MBs.

The UNGUATOR^® MBs are steadily guided up and down inside the UNGUATOR^® Jar. Their special design results in tight contact between the Mixing Blade and the inside wall of the UNGUATOR^® Jar which serves primarily for the comminution of the substances during the mixing process.

Additionally forced mixing in the whole mixing space is achieved through the shape and vibration of substances while preparing the ointment. The lubricating effect of the foundation ointment protects the UNGUATOR^® Jars and the UNGUATOR^® MB against abrasion. Discolorations of the Mixing Blade are mostly irreversible and therefore harmless.

Unguator Standard Mixing Blades (SMB)

UNGUATOR^® SMB are designed to operate with a specific corresponding UNGUATOR^® Jar (e.g. a specific 30ml mixing blade for the 30 ml jar). To ensure proper operation, jars should not be used in conjunction with different size blades. The UNGUATOR^® e/s, UNGUATOR^® Q, UNGUATOR® 2100 models apply sensors to establish proper blade size and using an inappropriately sized mixing blade will display an error message. It is recommended that the UNGUATOR^® MB be thoroughly cleaned or wiped down after each use. Rinsing with hot water or placing the blade in the dishwater may also be necessary and possible when using certain ingredients; UNGUATOR® SMBs are dishwasher safe. Please do not use sharp or abrasive materials to clean neither the UNGUATOR^® devices nor the UNGUATOR^® MBs.

UNGUATOR^® SMB should be checked and cleaned of any residual ingredients or deposits from previous formulations. It is also possible to utilize a mild disinfectant bath to safeguard against leftover germs or contamination. The UNGUATOR^® MB is designed to be slightly larger in diameter than its corresponding Unguator® jar to optimize shear and total ingredient incorporation during the mixing process. For best results with all preparations, it is recommended to remove as much excess air as possible from the inside of the jar by pushing the movable bottom up (with jar lid slightly not firmly closed) prior starting the actual mixing process.

Agglomerates and micro fine crystalline materials are effectively reduced and dispersed, as they pass in between the standard mixing blade „wing“ and the wall of the Unguator® jar during the mixing process. This shear is similar to the action produced by the ointment mill or traditional mortar & pestle. The ointment or material „base“ being used acts as a lubricant for the jar wall and mixing blade in the presence of crystallines and other solid substances. (Caution: do not mix the solid materials without a base or other semi-liquid material as damage to the mixing blade and jar may occur!).

Please make sure to apply the correct SMB size together with the respecting Unguator jar size.

Size	Pack Size	Price incl. VAT	Product Code
50ml	1	R855.81	AT1000000600
100ml	1	R855.81	AT1000000598
200ml	1	R855.81	AT1000000601
300ml	1	R855.81	AT1000000602
500ml	1	R855.81	AT1000000603
1000ml	1	R992.36	AT1000000604

Learn More

For more information :

Unguator EMP Accessories

R155.25

The UNGUATOR^® Varionozzle 1, 2, 4 mm are inserted into the central opening of the lid. They reduce the opening of the UNGUATOR^® jars from 9 mm to 1, 2 and 4mm.

R855.81 – R992.36

Both UNGUATOR^® Standard Mixing Blade (SMB) and UNGUATOR^® Disposable Blade (disp. blades) are designated as UNGUATOR^® MBs.

R99.43

The UNGUATOR^® – spindle serves to extract the ointment from Unguator jar sizes both 300/390ml and 500/600ml. New jars have the spindle slightly attached at the bottom and need to be removed by turning to the right, prior the mixing process.

R143.75 – R334.97

All Unguator^® jars operate on the patented “piston-principle” design, which serves unique functions prior, during, and after the mixing process. The Unguator^® system is unique in that all ingredients can be weighed into the mixing jar at the same time. The closed environment achieved in the container eliminates the problems of air intake and contaminations associated with traditional preparations.

R228.53 – R666.04

Both UNGUATOR^® Standard Mixing Blade (SMB) and UNGUATOR^® Disposable Blade (disp. blades) are designated as UNGUATOR^® MBs.

R62.10 – R69.00

The UNGUATOR^® applicators reduce the dispensed amount of low viscosity preparations and are used for precise dispensing of low-viscosity preparations.

R37.26 – R566.16

The AirDynamic^® pump system consists of a pump ball and jar adapter that are connected by a hose.
